[일렉트론][리액트] 캐릭터 만들어보기

목차


데스크톱에 캐릭터를 띄어보고자 해서 일렉트론으로 만들어 보았다.

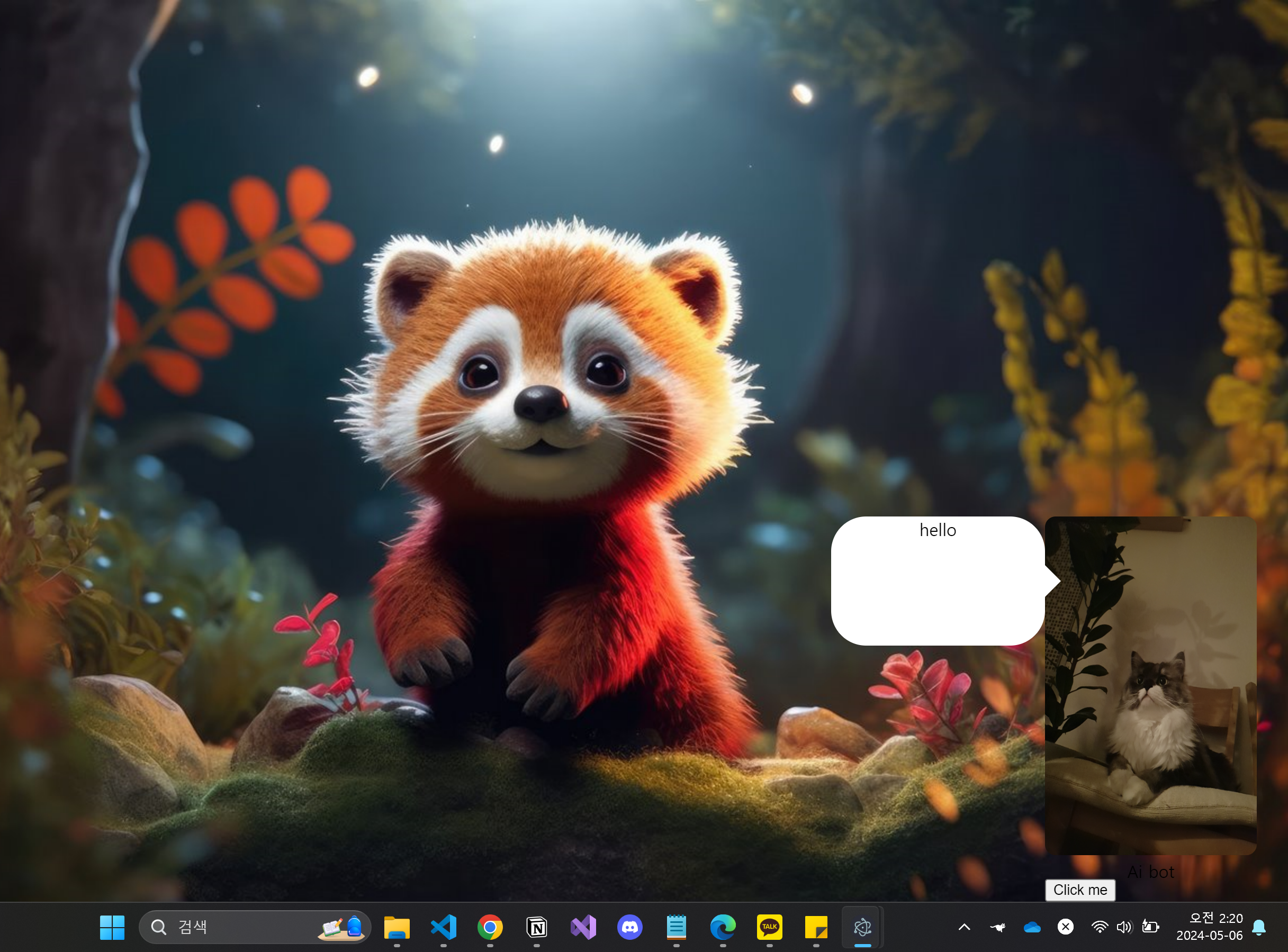

대충 데스크톱에 띄어진 모습



main.js

// public/electron.js
const { app, BrowserWindow} = await import("electron");
const path = await import("path");
const isDev = await import("electron-is-dev");

let mainWindow;

function createWindow() {
  //const { width, height } = screen.getPrimaryDisplay().workAreaSize;
  mainWindow = new BrowserWindow({
    width: 500,  //크기 조정
    height: 400,
    frame: false, //frame제거
    transparent: true, //투명하게 만들어 줌
    alwaysOnTop: true, //우선적으로 선택하게 해줌

    webPreferences: {
      nodeIntegration: true,
      enableRemoteModule: true,
      devTools: isDev,
    },
  });

  mainWindow.loadURL(
    isDev
      ? "http://localhost:3000"
      : `file://${path.join(__dirname, "../build/index.html")}`
  );

  if (isDev) mainWindow.webContents.openDevTools({ mode: "detach" }); //개발모드

  mainWindow.setResizable(true);
  mainWindow.on("closed", () => {
    mainWindow = null;
    app.quit();
  });
  mainWindow.focus();
  mainWindow.setPosition(1000, 480);  //창이 띄어질 위치 구현
}

app.on("ready", createWindow);

app.on("activate", () => {
  if (mainWindow === null) createWindow();
});

app.on("window-all-closed", () => {
  if (process.platform !== "darwin") app.quit();
});



MainPage.tsx

import { motion, AnimatePresence } from "framer-motion";
import { useState } from "react";
import styled from "styled-components";
import MainCharacter from "./MainCharacter";
import ChattingContainer from "./ChattingContainer";
const Styledback = styled.div`
  width: 100vw;
  height: 100vw;
  border: none;
  display: flex;
  flex-direction: row;
`;

function MainPage() {


  return (
    <Styledback>
      <ChattingContainer></ChattingContainer>
      <MainCharacter></MainCharacter>
    </Styledback>
  );
}

export default MainPage;



MainCharacter.tsx

import { motion, AnimatePresence } from "framer-motion";  //부드러운 애니메이션용 라이브러리
import styled from "styled-components";
import { emotionState } from "./recoil/EmotionAtom";
import { useState } from "react";
import { useRecoilState } from "recoil";
const Styledback = styled.div`
  width: 40vw;
  height: 85vh;
  //position: fixed;
  //bottom: 0;
  //right: 0;
  text-align: center;
`;

const Styledimg = styled.img`
  width: 40vw;
  height: 80vh;
  border-radius: 10px;
`;

function MainCharacter() {
  const [isVisible, setVisible] = useState<boolean>(false);
  const [emotion, setemotion] = useRecoilState(emotionState);  //상태 관리 recoil이용

  function handleClick() {
    setVisible(!isVisible);
  }
  return (
    <div>
      <Styledback>
        <AnimatePresence initial={false}>
          {isVisible && (
            <motion.div
              initial={{ opacity: 0 }}
              animate={{ opacity: 1 }}
              exit={{ opacity: 0 }}
              whileHover={{ scale: 1.2 }}
            >
              <Styledimg src={`./img/${emotion}.jpg`} alt="img" />
            </motion.div>
          )}
        </AnimatePresence>
        Ai bot
      </Styledback>
      <button onClick={handleClick}>Click me</button>
    </div>
  );
}

export default MainCharacter;



ChattingContainer.tsx

import Chatting from "./Chatting";
import styled from "styled-components";

//말풍선 css
const StyledChat = styled.div`
  position: relative;
  width: 40vw;
  height: 30vh;
  padding: 1px;
  background: #ffffff;
  -webkit-border-radius: 33px;
  -moz-border-radius: 33px;
  border-radius: 33px;
  text-align: center;

  &::after {
    content: "";
    position: absolute;
    border-style: solid;
    border-width: 15px 0 15px 15px;
    border-color: transparent #ffffff;
    display: block;
    width: 0;
    z-index: 1;
    right: -15px;
    top: 46px;
  }
`;

function ChattingContainer() {
  return (
    <StyledChat>
      <Chatting></Chatting>
    </StyledChat>
  );
}

export default ChattingContainer;



.env.local

BROWSER = none

웹에 창이 안띄어지게 설정을 위해 필요하다.


recoil 상태관리

import { atom, useRecoilState } from "recoil";

export const emotionState = atom({
  key: "imgState", // unique ID (with respect to other atoms/selectors)
  default: "happy", // default value (aka initial value)
});

export const textState = atom({
  key: "textState", // unique ID (with respect to other atoms/selectors)
  default: "hello", // default value (aka initial value)
});

리덕스보다 훨씬 쉽다 ㅎㅎ
